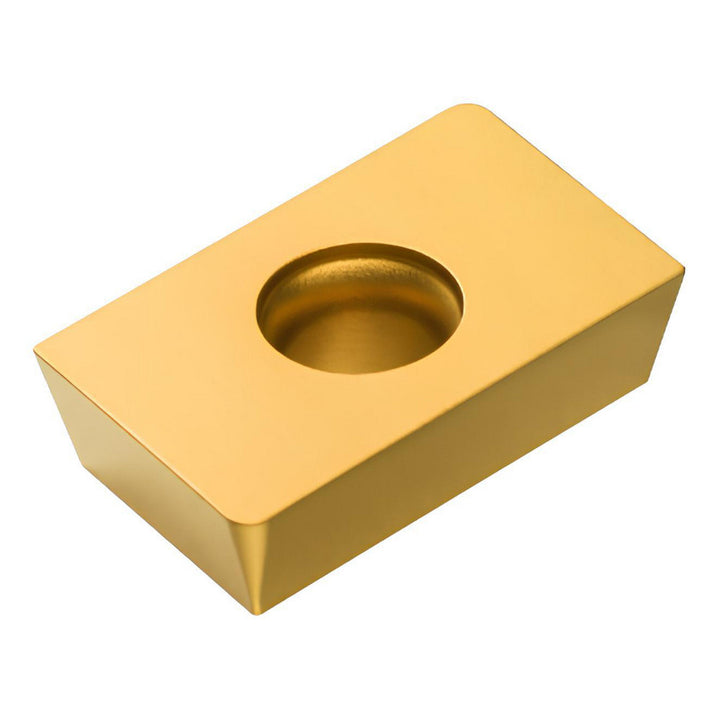

R216.2-15 T3 08-1 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5742827

Sandvik Coromant

R216.2-15 T3 08-1 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5742827

MFR# 5742827ISO/ANSI# R216.2-15 T3 08-1 235Cat# R216.2-15 T3 08-1 235Series R216.2

$22.40List $28.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade235
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5742827 is a R216.2-15 T3 08-1 235 solid carbide indexable insert, grade 235, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeR216.2-15 T3 08-1 235
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR216.2
Cutting edge styleCorner Rounded
Hole diameter0.1575
Included angle degree90
Inscribed circle0.1570
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size15
Insert size code15T3081
Insert styleR216.2
Iso codeR216.2-15 T3 08-1 235
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberR216.2-15 T3 08-1 235
Manufacturer grade235
Material applicationSteel; Stainless Steel
Maximum depth of cut0.5906
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.1575
