Sandvik Coromant

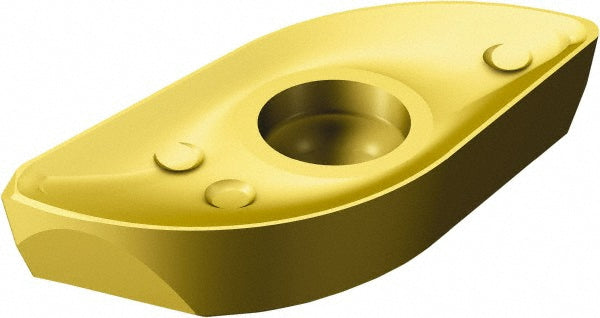

R216-12 02 M-M 1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5743581
MFR# 5743581ISO/ANSI# R216-12 02 M-M 1025Cat# R216-12 02 M-M 1025Series R216
$45.47List $58.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
Grade1025
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5743581 is a R216-12 02 M-M 1025 solid carbide indexable insert, grade 1025, TiCN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Ansi codeR216-12 02 M-M 1025
Chip breakerM
Coating finishTiCN
Coating processPVD
Convex radius0.2362
Corner radius0.4720
Cutter series compatibilityR216
Cutting edge styleRounded
Hole diameter0.1142
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size12
Insert size code1202
Insert styleR216
Iso codeR216-12 02 M-M 1025
Length0.4252
Length range0.4000 to 0.4500
Manufacturers catalog numberR216-12 02 M-M 1025
Manufacturer grade1025
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.4213
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
