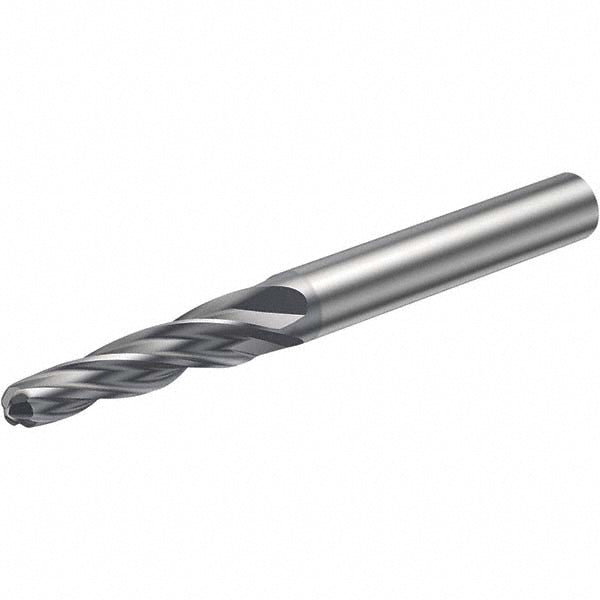

0.3933" 4-Flute Solid Carbide Ball End Mill, TiAlN - Sandvik Coromant 5743599

Sandvik Coromant

0.3933" 4-Flute Solid Carbide Ball End Mill, TiAlN - Sandvik Coromant 5743599

MFR# 5743599Cat# R2165410040RAL40G1620Series R216.54

$260.21List $333.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5743599 is a 0.3933 4-flute Solid Carbide (1620) ball end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. Series R216.54.

Specifications

ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Helix styleHigh
Length of cut (mm)40.00
Length typeStandard
Manufacturers catalog numberR2165410040RAL40G1620
Material grade1620
Material removal typeRoughing & Finishing
Mill diameter0.3933
Nose radius (mm)5.00
Number of flutes4
Overall length (mm)115.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length (mm)40.00
Shank diameter (mm)14.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
