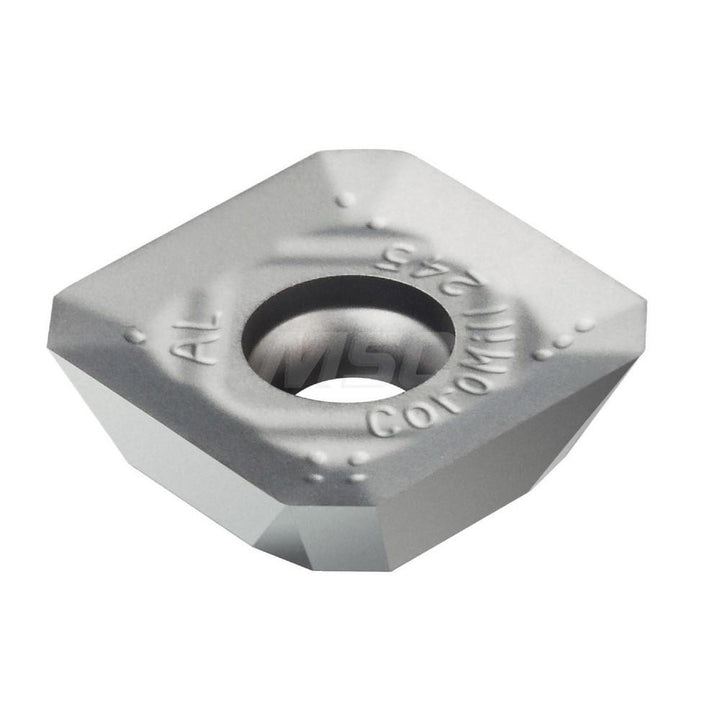

R245-12 T3 E-AL H10 Solid Carbide Insert, Grade H10 - Sandvik Coromant 5743873
MFR# 5743873ISO/ANSI# R245-12 T3 E-AL H10Cat# R245-12 T3 E-AL H10Series R245
$21.67List $27.22
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeH10
MaterialSolid Carbide
Description
The Sandvik Coromant 5743873 is a R245-12 T3 E-AL H10 solid carbide indexable insert, grade H10. Suited for cast iron, non-ferrous metal.
Specifications
Ansi codeR245-12 T3 E-AL H10
Chip breakerAL
Coating processUncoated
Corner radius0.0980
Cutter series compatibilityR245
Cutting edge styleHoned
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 E-AL H10
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 E-AL H10
Manufacturer gradeH10
Material applicationCast Iron; Non-Ferrous Metal
Material gradeN10
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Rake angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
