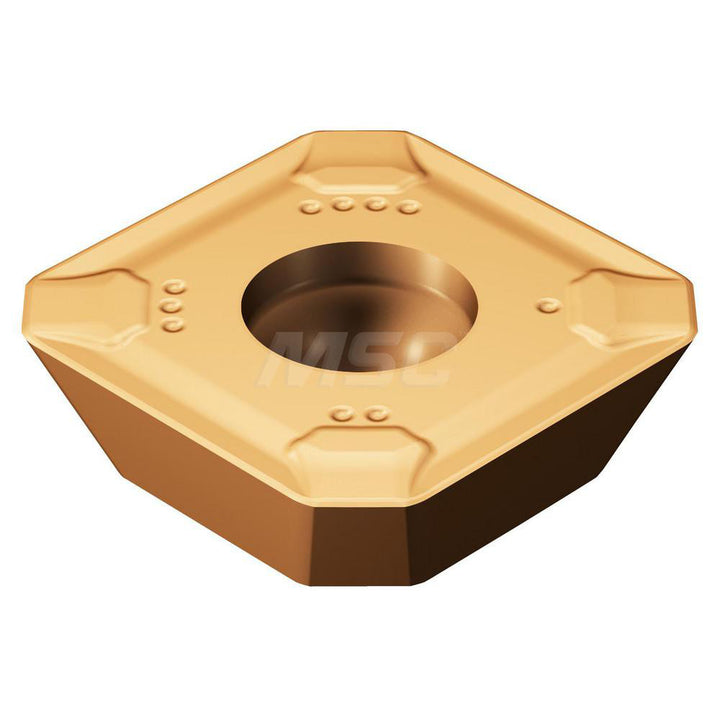

R245-12 T3 E-KL 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5743879
MFR# 5743879ISO/ANSI# R245-12 T3 E-KL 1020Cat# R245-12 T3 E-KL 1020Series R245
$34.80List $43.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
Grade1020
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5743879 is a R245-12 T3 E-KL 1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.
Specifications
Ansi codeR245-12 T3 E-KL 1020
Chip breakerKL
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 E-KL 1020
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 E-KL 1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
