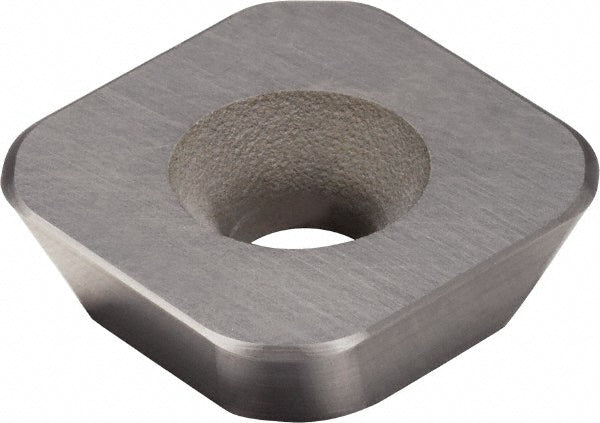

R245-12 T3 E CD10 Diamond Tipped Insert, Grade CD10 - Sandvik Coromant 5743943

Sandvik Coromant

R245-12 T3 E CD10 Diamond Tipped Insert, Grade CD10 - Sandvik Coromant 5743943

MFR# 5743943ISO/ANSI# R245-12 T3 E CD10Cat# R245-12 T3 E CD10Series R245

$149.05List $191.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeCD10
MaterialDiamond Tipped

Description

The Sandvik Coromant 5743943 is a R245-12 T3 E CD10 diamond tipped indexable insert, grade CD10. Suited for non-ferrous metal.

Specifications

Ansi codeR245-12 T3 E CD10
Chip breakerFlat Top
Coating processUncoated
Corner radius0.0591
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialDiamond Tipped
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 E CD10
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 E CD10
Manufacturer gradeCD10
Material applicationNon-Ferrous Metal
Material gradeN05
Maximum depth of cut0.0984
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
