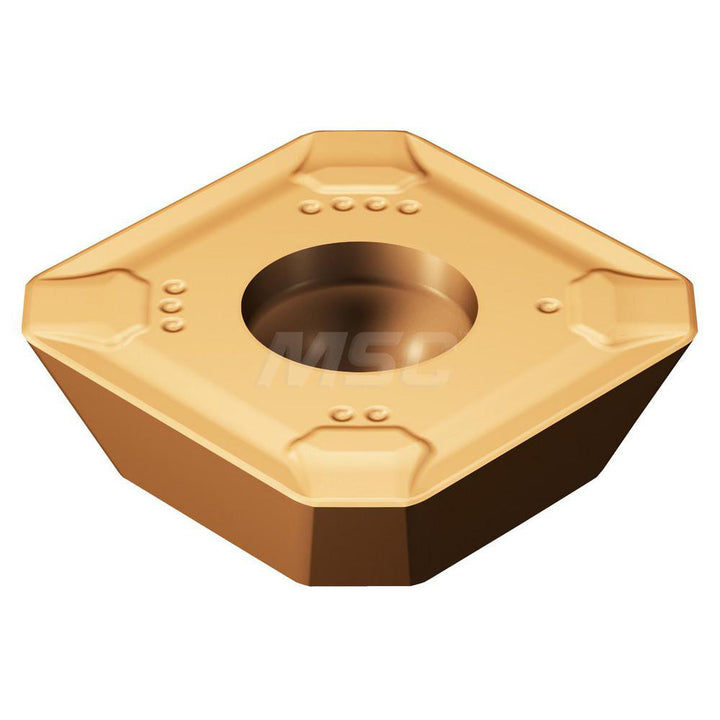

R245-18 T6 M-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5743993

Sandvik Coromant

R245-18 T6 M-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5743993

MFR# 5743993ISO/ANSI# R245-18 T6 M-KM 1020Cat# R245-18 T6 M-KM 1020Series R245

$32.25List $41.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1020
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5743993 is a R245-18 T6 M-KM 1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeR245-18 T6 M-KM 1020
Chip breakerKM
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.7087
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size18
Insert size code18T6
Insert styleR245
Iso codeR245-18 T6 M-KM 1020
Length0.7087
Length range0.7000 to 0.9000
Manufacturers catalog numberR245-18 T6 M-KM 1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.3839
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2402
Thickness range0.2350 to 0.2500
Width0.7087
