R290-12T308M-PM 530 Cermet Insert, Grade 530 - Sandvik Coromant 5744236

Sandvik Coromant

R290-12T308M-PM 530 Cermet Insert, Grade 530 - Sandvik Coromant 5744236

MFR# 5744236ISO/ANSI# R290-12T308M-PM 530Cat# R290-12T308M-PM 530Series R290

$18.90List $24.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade530
MaterialCermet

Description

The Sandvik Coromant 5744236 is a R290-12T308M-PM 530 cermet indexable insert, grade 530. Suited for steel, stainless steel, non-ferrous metal, hard material.

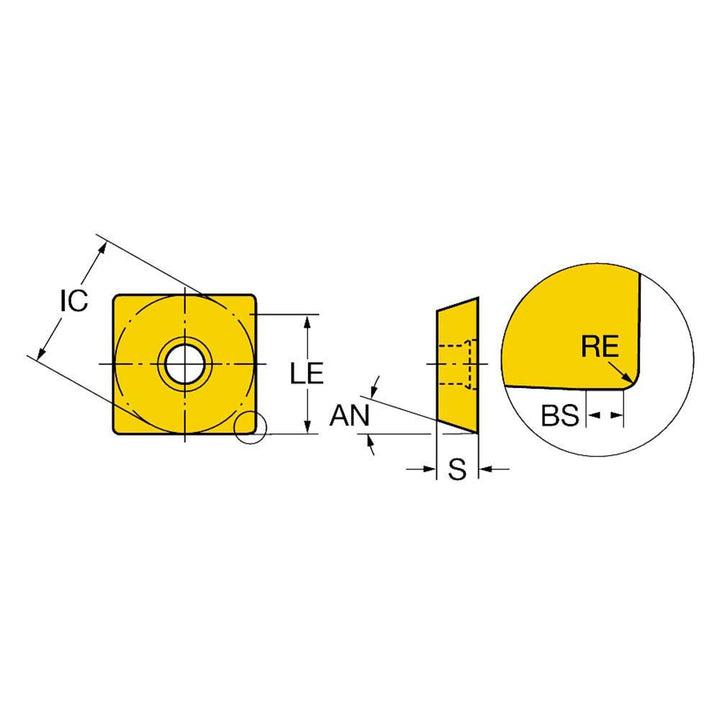

Specifications

Ansi codeR290-12T308M-PM 530
Chip breakerPM
Coating processUncoated
Corner radius in1/32
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5232
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialCermet
Insert shapeSquare
Insert size12
Insert size code12T308
Insert styleR290
Iso codeR290-12T308M-PM 530
Length0.5232
Length range0.5000 to 0.6000
Manufacturers catalog numberR290-12T308M-PM 530
Manufacturer grade530
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
Maximum depth of cut0.4213
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5232
