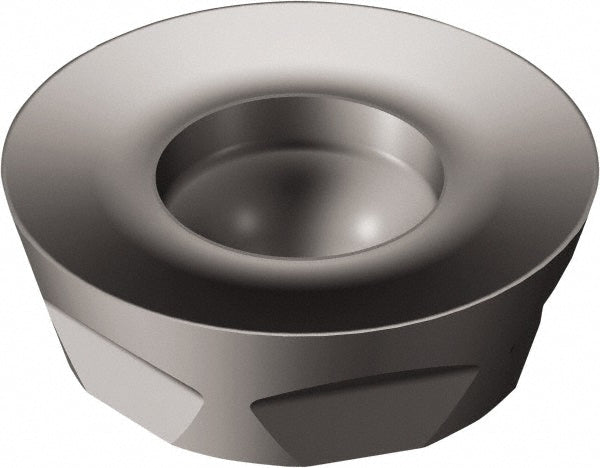

R300-1340E-PM 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5744447
MFR# 5744447ISO/ANSI# R300-1340E-PM 1010Cat# R300-1340E-PM 1010Series R300
$25.47List $32.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
Grade1010
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5744447 is a R300-1340E-PM 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.
Specifications
Ansi codeR300-1340E-PM 1010
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityRA300
Cutting edge styleRounded
Hole diameter0.1614
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code1340
Insert styleR300
Iso codeR300-1340E-PM 1010
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberR300-1340E-PM 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.1252
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in1/2
