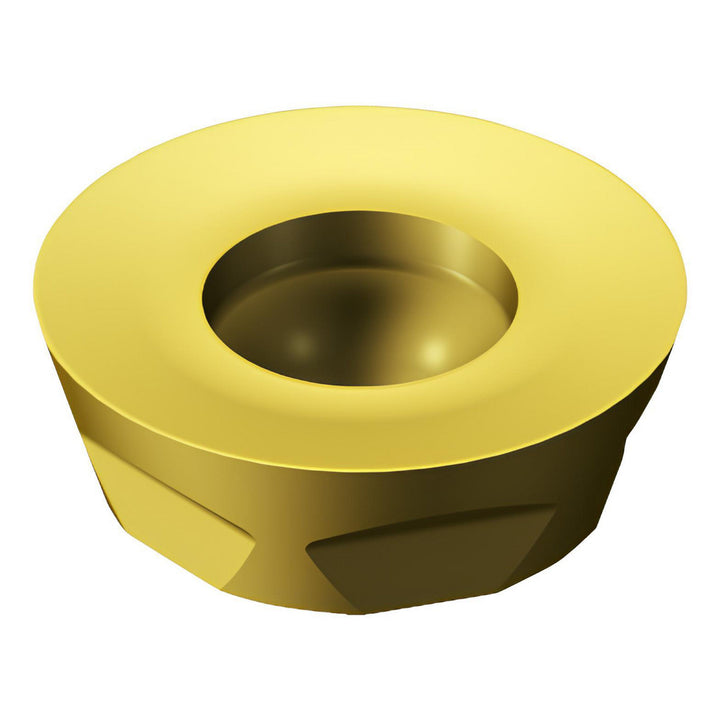

R300-1340E-MM 2030 Solid Carbide Insert, Grade 2030, TiAlN - Sandvik Coromant 5744482
MFR# 5744482ISO/ANSI# R300-1340E-MM 2030Cat# R300-1340E-MM 2030Series R300
$22.53List $28.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
Grade2030
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5744482 is a R300-1340E-MM 2030 solid carbide indexable insert, grade 2030, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeR300-1340E-MM 2030
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityRA300
Cutting edge styleRounded
Hole diameter0.1614
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code1340
Insert styleR300
Iso codeR300-1340E-MM 2030
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberR300-1340E-MM 2030
Manufacturer grade2030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP30; M25; S20
Maximum depth of cut0.1252
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in1/2
