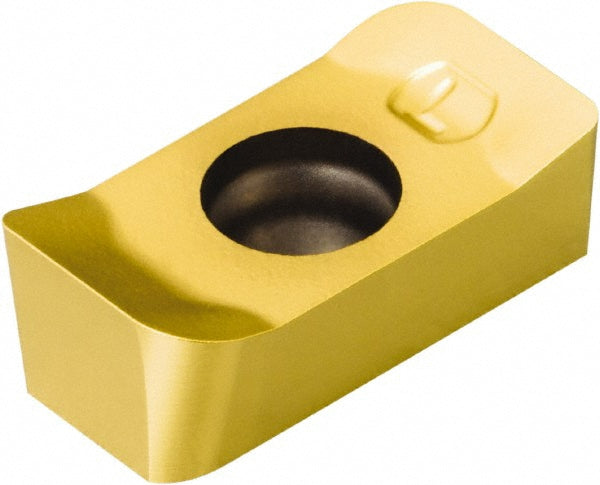

R331.1A-04 35 15H-WL1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5744707

Sandvik Coromant

R331.1A-04 35 15H-WL1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5744707

MFR# 5744707ISO/ANSI# R331.1A-04 35 15H-WL1025Cat# R331.1A-04 35 15H-WL1025Series R331.1A

$38.90List $49.03 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1025
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5744707 is a R331.1A-04 35 15H-WL1025 solid carbide indexable insert, grade 1025, TiCN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR331.1A-04 35 15H-WL1025
Chip breakerWL
Coating finishTiCN
Coating processPVD
Corner radius0.0598
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1024
Included angle degree90
Inscribed circle0.2000
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size04
Insert size code043515
Insert styleR331.1A
Iso codeR331.1A-04 35 15H-WL1025
Length0.1811
Length range0.0000 to 0.3200
Manufacturers catalog numberR331.1A-04 35 15H-WL1025
Manufacturer grade1025
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.1811
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.3740
