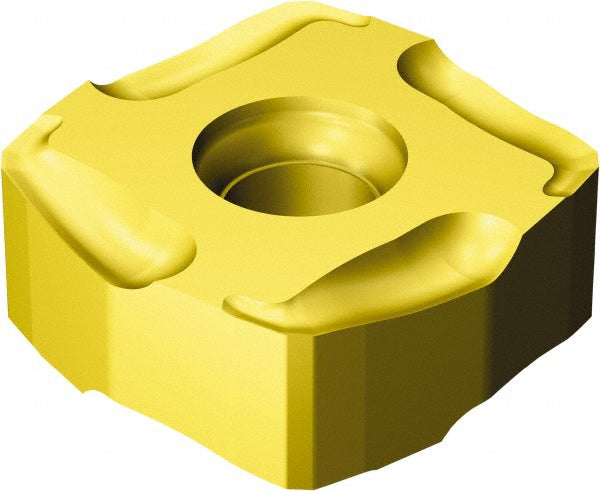

R365-1505ZNE-KM K20W Solid Carbide Insert, Grade K20W, TiCrN - Sandvik Coromant 5745388

Sandvik Coromant

R365-1505ZNE-KM K20W Solid Carbide Insert, Grade K20W, TiCrN - Sandvik Coromant 5745388

MFR# 5745388ISO/ANSI# R365-1505ZNE-KM K20WCat# R365-1505ZNE-KM K20WSeries R365

$35.12List $45.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeK20W
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5745388 is a R365-1505ZNE-KM K20W solid carbide indexable insert, grade K20W, TiCrN coated. Suited for cast iron.

Specifications

Ansi codeR365-1505ZNE-KM K20W
Chip breakerKM
Coating finishTiCrN
Coating processCVD
Corner radius0.0118
Cutter series compatibilityR365
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle0.5906
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1505
Insert styleR365
Iso codeR365-1505ZNE-KM K20W
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberR365-1505ZNE-KM K20W
Manufacturer gradeK20W
Material applicationCast Iron
Material gradeK20
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle1
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2228
Thickness range0.2200 to 0.2350
Width0.5906
