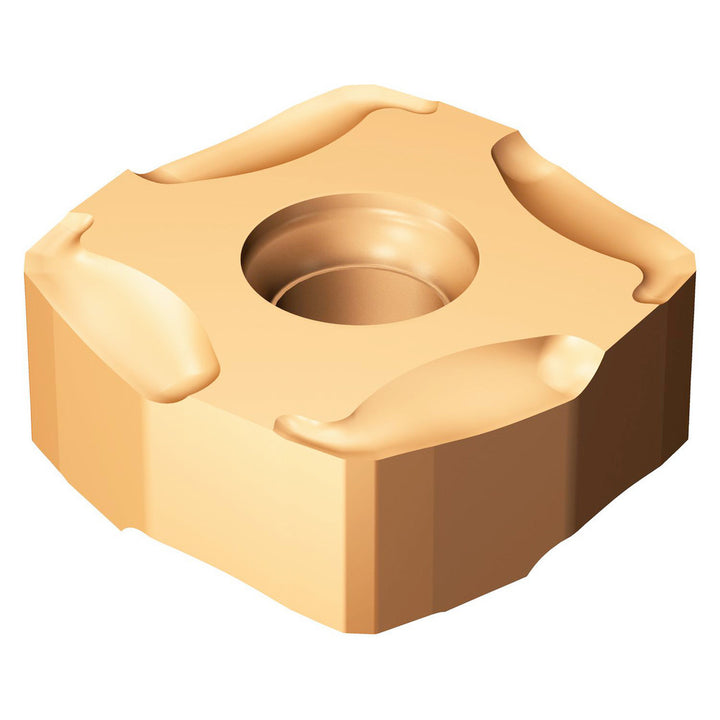

R365-1505ZNE-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5745390

Sandvik Coromant

R365-1505ZNE-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5745390

MFR# 5745390ISO/ANSI# R365-1505ZNE-KM 1020Cat# R365-1505ZNE-KM 1020Series R365

$38.01List $48.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1020
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5745390 is a R365-1505ZNE-KM 1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeR365-1505ZNE-KM 1020
Chip breakerKM
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutter series compatibilityR365
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle0.5906
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1505
Insert styleR365
Iso codeR365-1505ZNE-KM 1020
Length0.2520
Length range0.0000 to 0.3200
Manufacturers catalog numberR365-1505ZNE-KM 1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle1
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2228
Thickness range0.2200 to 0.2350
Width0.5906
