Sandvik Coromant

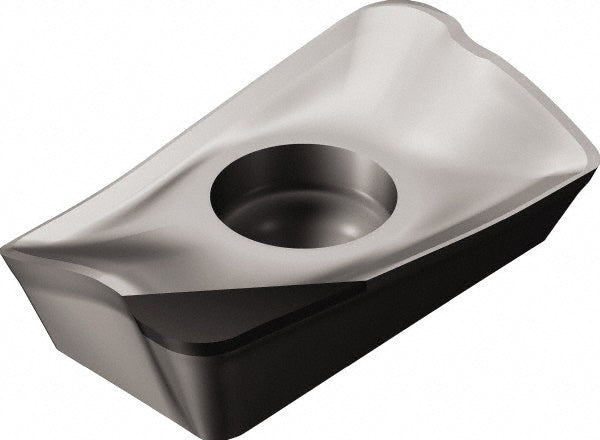

R390-11T304E-P4-NL CD10 Diamond Tipped Insert, Grade CD10 - Sandvik Coromant 5745449
MFR# 5745449ISO/ANSI# R390-11T304E-P4-NL CD10Cat# R390-11T304E-P4-NL CD10Series R390
$180.83List $227.88
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeCD10
MaterialDiamond Tipped
Description
The Sandvik Coromant 5745449 is a R390-11T304E-P4-NL CD10 diamond tipped indexable insert, grade CD10. Suited for non-ferrous metal.
Specifications
Ansi codeR390-11T304E-P4-NL CD10
Chip breakerNL
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialDiamond Tipped
Insert shapeParallelogram
Insert size11
Insert size code11T304
Insert styleR390
Iso codeR390-11T304E-P4-NL CD10
Length0.1575
Length range0.0000 to 0.3200
Manufacturers catalog numberR390-11T304E-P4-NL CD10
Manufacturer gradeCD10
Material applicationNon-Ferrous Metal
Material gradeN05
Maximum depth of cut0.1575
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
