Sandvik Coromant

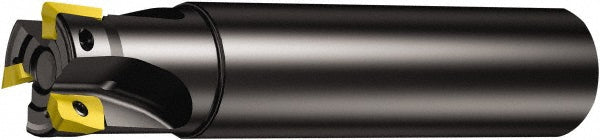

Indexable End Mills - Sandvik Coromant 5745458
MFR# 5745458Series CoroMill 390
$420.76List $447.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sandvik Coromant 5745458 indexable end mills. Series CoroMill 390.
Specifications
Coolant throughYes
Cutter styleCoroMill® 390
Cutting diameter0.6299
Cutting diameter (mm)16.00
End mill typeRamping
Head length in63/64
Insert compatibilityR390-11..
Insert holding methodScrew
Iso numberR390-016A16-11L
Lead angle90
Maximum depth of cut0.3937
Maximum rpm41500
Number of cutter inserts2
Number of flutes2
Overall length in3-15/16
Shank diameter0.6299
Shank length2.9528
Shank typeCylindrical
Tool materialSteel
