Sandvik Coromant

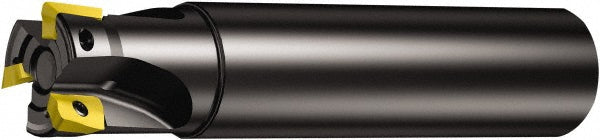

Indexable End Mills - Sandvik Coromant 5745478
MFR# 5745478Series CoroMill 390
$501.01List $523.00
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Sandvik Coromant 5745478 indexable end mills. Series CoroMill 390.
Specifications
Coolant throughYes
Cutter styleCoroMill® 390
Cutting diameter0.7874
Cutting diameter (mm)20.00
End mill typeRamping
Head length in63/64
Insert compatibilityR390-11..
Insert holding methodScrew
Iso numberR390-020A20-11M
Lead angle90
Maximum depth of cut0.3937
Maximum rpm34600
Number of cutter inserts3
Number of flutes3
Overall length4.3307
Shank diameter0.7874
Shank length3.3465
Shank typeCylindrical
Tool materialSteel
