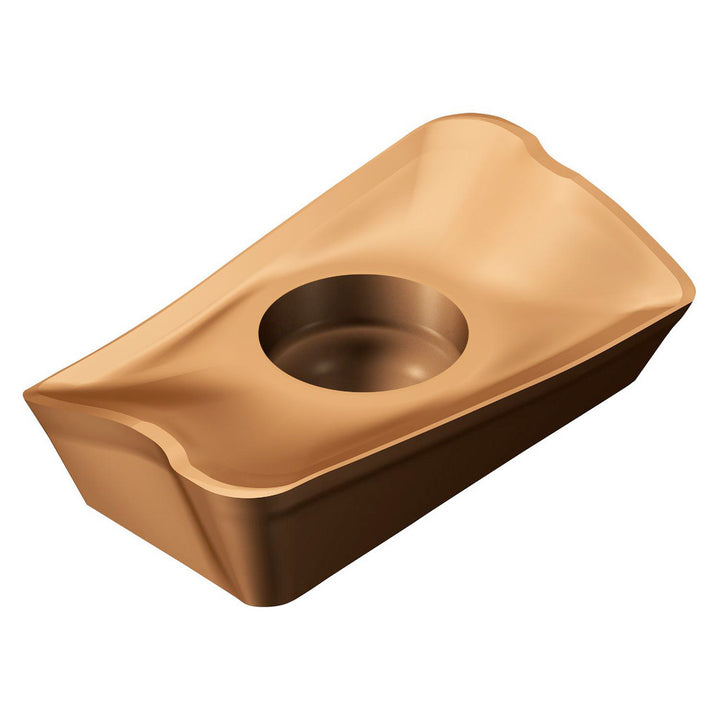

R390-11 T3 08M-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5745644

Sandvik Coromant

R390-11 T3 08M-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5745644

MFR# 5745644ISO/ANSI# R390-11 T3 08M-KM 1020Cat# R390-11 T3 08M-KM 1020Series R390

$24.96List $32.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1020
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5745644 is a R390-11 T3 08M-KM 1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeR390-11 T3 08M-KM 1020
Chip breakerKM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleR390
Iso codeR390-11 T3 08M-KM 1020
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 08M-KM 1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
