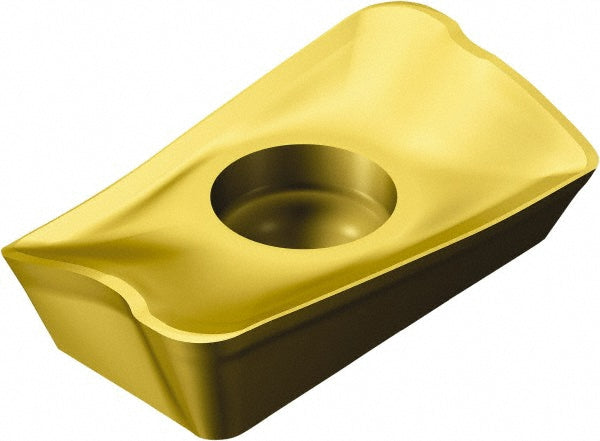

R390-11 T3 08E-PLW 1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5745656

Sandvik Coromant

R390-11 T3 08E-PLW 1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5745656

MFR# 5745656ISO/ANSI# R390-11 T3 08E-PLW 1025Cat# R390-11 T3 08E-PLW 1025Series R390

$51.76List $65.23 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1025
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5745656 is a R390-11 T3 08E-PLW 1025 solid carbide indexable insert, grade 1025, TiCN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR390-11 T3 08E-PLW 1025
Chip breakerPLW
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityM-32; R390
Cutting edge styleWiper
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleR390
Iso codeR390-11 T3 08E-PLW 1025
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 08E-PLW 1025
Manufacturer grade1025
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
