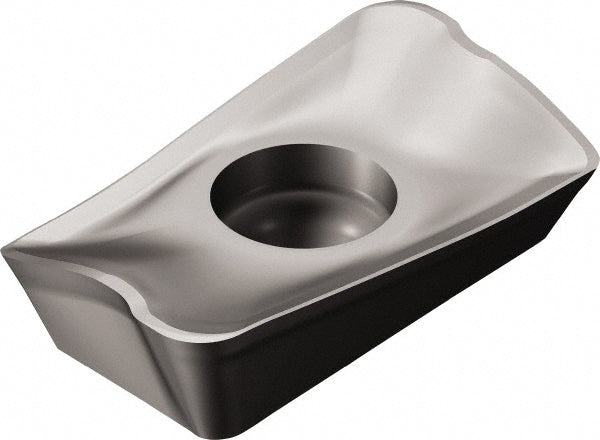

R390-11 T3 08M-PM 530 Cermet Insert, Grade 530 - Sandvik Coromant 5745683

Sandvik Coromant

R390-11 T3 08M-PM 530 Cermet Insert, Grade 530 - Sandvik Coromant 5745683

MFR# 5745683ISO/ANSI# R390-11 T3 08M-PM 530Cat# R390-11 T3 08M-PM 530Series R390

$19.88List $25.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade530
MaterialCermet

Description

The Sandvik Coromant 5745683 is a R390-11 T3 08M-PM 530 cermet indexable insert, grade 530. Suited for steel, stainless steel, non-ferrous metal, hard material.

Specifications

Ansi codeR390-11 T3 08M-PM 530
Chip breakerPM
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialCermet
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleR390
Iso codeR390-11 T3 08M-PM 530
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 08M-PM 530
Manufacturer grade530
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
RakePositive
Rake angle20
Relief angle21.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
