Sandvik Coromant

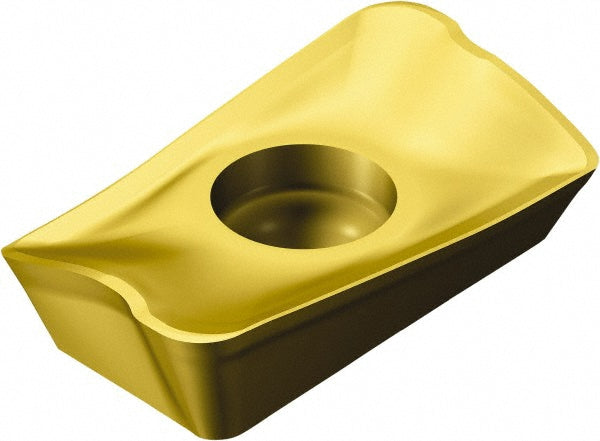

R390-17 04 31E-MM 2030 Solid Carbide Insert, Grade 2030, TiAlN - Sandvik Coromant 5745685
MFR# 5745685ISO/ANSI# R390-17 04 31E-MM 2030Cat# R390-17 04 31E-MM 2030Series R390
$39.66List $50.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
Grade2030
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5745685 is a R390-17 04 31E-MM 2030 solid carbide indexable insert, grade 2030, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeR390-17 04 31E-MM 2030
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius0.1220
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170431
Insert styleR390
Iso codeR390-17 04 31E-MM 2030
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 31E-MM 2030
Manufacturer grade2030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP30; M25; S20
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle22
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
