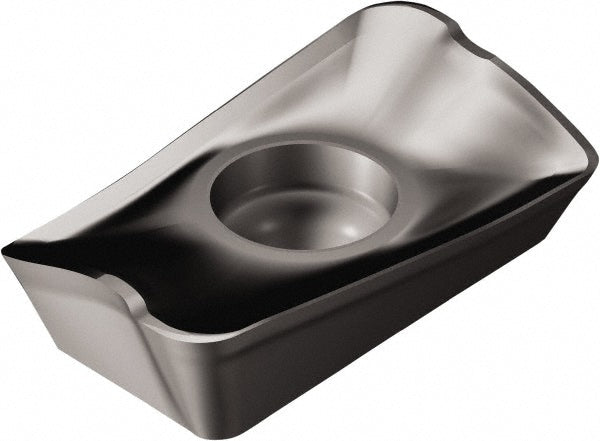

R390-11 T3 08M-PM 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5745711

Sandvik Coromant

R390-11 T3 08M-PM 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5745711

MFR# 5745711ISO/ANSI# R390-11 T3 08M-PM 1010Cat# R390-11 T3 08M-PM 1010Series R390

$23.12List $29.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1010
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5745711 is a R390-11 T3 08M-PM 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeR390-11 T3 08M-PM 1010
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleR390
Iso codeR390-11 T3 08M-PM 1010
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 08M-PM 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
