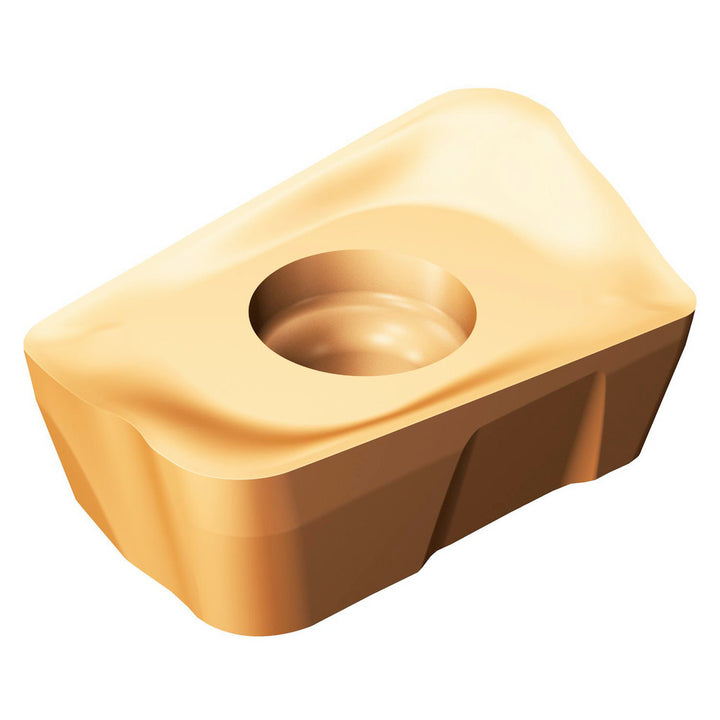

R390-18 06 12M-KM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5745931
MFR# 5745931ISO/ANSI# R390-18 06 12M-KM 1020Cat# R390-18 06 12M-KM 1020Series R390
$36.62List $46.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
Grade1020
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5745931 is a R390-18 06 12M-KM 1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.
Specifications
Ansi codeR390-18 06 12M-KM 1020
Chip breakerKM
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityM-40; R390
Cutting edge styleCorner Rounded
Hole diameter0.1634
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180612
Insert styleR390
Iso codeR390-18 06 12M-KM 1020
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-18 06 12M-KM 1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2492
Thickness range0.2350 to 0.2500
Width0.4331
