Sandvik Coromant

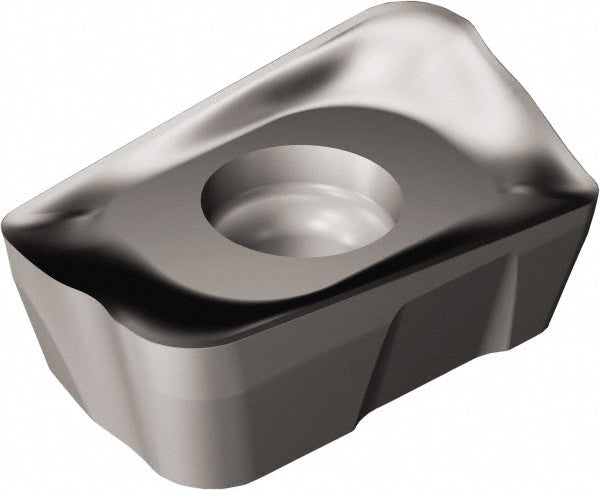

R390-18 06 12M-PM 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5746096
MFR# 5746096ISO/ANSI# R390-18 06 12M-PM 1010Cat# R390-18 06 12M-PM 1010Series R390
$36.62List $46.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
Grade1010
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5746096 is a R390-18 06 12M-PM 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.
Specifications
Ansi codeR390-18 06 12M-PM 1010
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityM-40; R390
Cutting edge styleCorner Rounded
Hole diameter0.1634
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180612
Insert styleR390
Iso codeR390-18 06 12M-PM 1010
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-18 06 12M-PM 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2492
Thickness range0.2350 to 0.2500
Width0.4331
