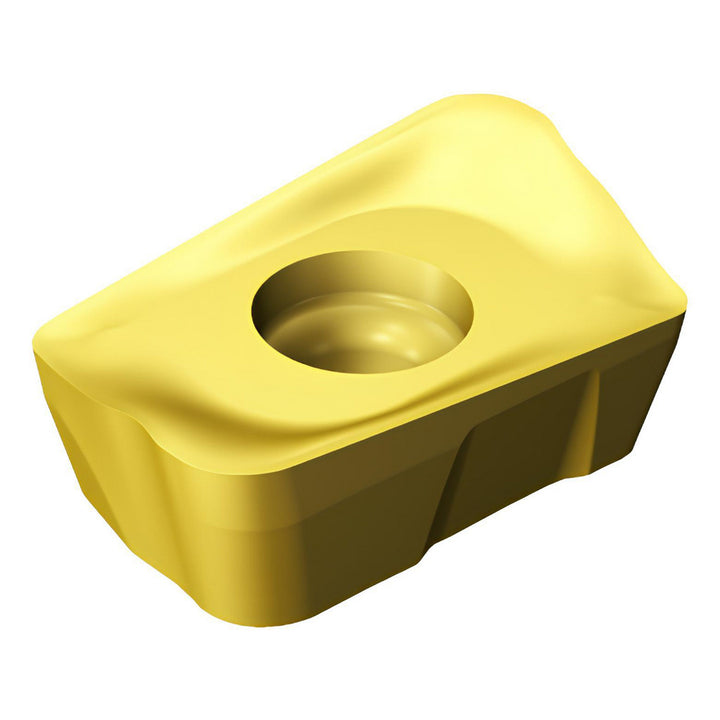

R390-18 06 50H-ML 2030 Solid Carbide Insert, Grade 2030, TiAlN - Sandvik Coromant 5746535

Sandvik Coromant

R390-18 06 50H-ML 2030 Solid Carbide Insert, Grade 2030, TiAlN - Sandvik Coromant 5746535

MFR# 5746535ISO/ANSI# R390-18 06 50H-ML 2030Cat# R390-18 06 50H-ML 2030Series R390

$38.09List $48.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade2030
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5746535 is a R390-18 06 50H-ML 2030 solid carbide indexable insert, grade 2030, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeR390-18 06 50H-ML 2030
Chip breakerML
Coating finishTiAlN
Coating processPVD
Corner radius0.1969
Cutter series compatibilityM-40; R390
Cutting edge styleCorner Rounded
Hole diameter0.1634
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180650
Insert styleR390
Iso codeR390-18 06 50H-ML 2030
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-18 06 50H-ML 2030
Manufacturer grade2030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP30; M25; S20
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2492
Thickness range0.2350 to 0.2500
Width0.4331
