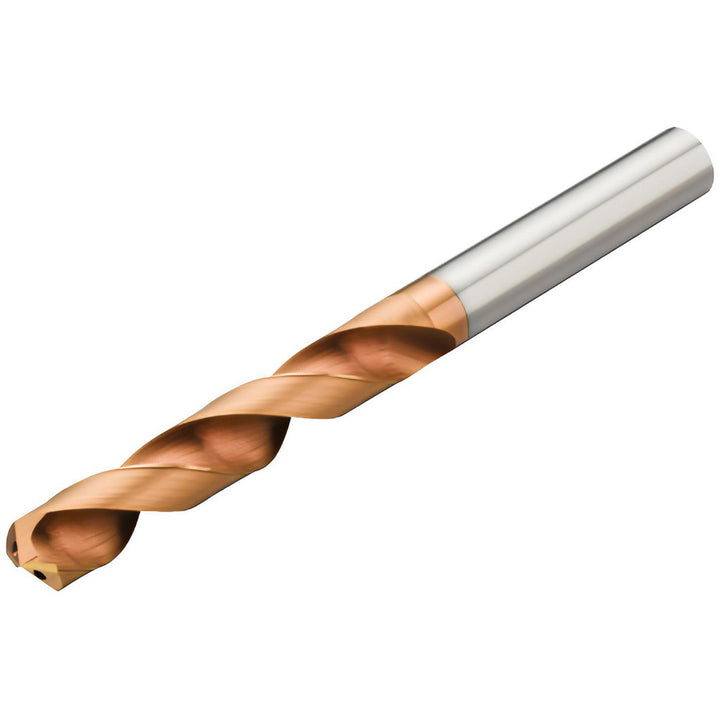

13/64" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5746768

Sandvik Coromant

13/64" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5746768

MFR# 5746768Series R840

$199.57List $255.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2
CoatingTiAlN

Description

The Sandvik Coromant 5746768 is a 13/64" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series R840.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in13/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Drill point length0.0354
Flute by diameter ratio7xD
Flute length1.7323
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.7323
Number of flats0
Number of flutes2
Overall length3.2283
Point typeSelf Centering
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter0.2362
Shank length1.4960
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
Tool applicationDrilling
Tool performanceHigh Performance
