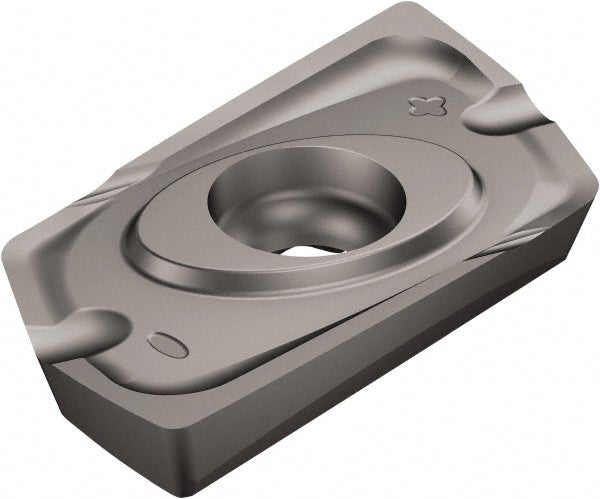

R790-160405PH-NM H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5747158

Sandvik Coromant

R790-160405PH-NM H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5747158

MFR# 5747158ISO/ANSI# R790-160405PH-NM H13ACat# R790-160405PH-NM H13ASeries R790

$51.88List $66.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeH13A
MaterialSolid Carbide

Description

The Sandvik Coromant 5747158 is a R790-160405PH-NM H13A solid carbide indexable insert, grade H13A. Suited for non-ferrous metal.

Specifications

Ansi codeR790-160405PH-NM H13A
Chip breakerNM
Coating processUncoated
Corner radius0.0197
Cutter series compatibilityR790
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160405
Insert styleR790
Iso codeR790-160405PH-NM H13A
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberR790-160405PH-NM H13A
Manufacturer gradeH13A
Material applicationNon-Ferrous Metal
Material gradeK20; N15; S20
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle9
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width0.4331
