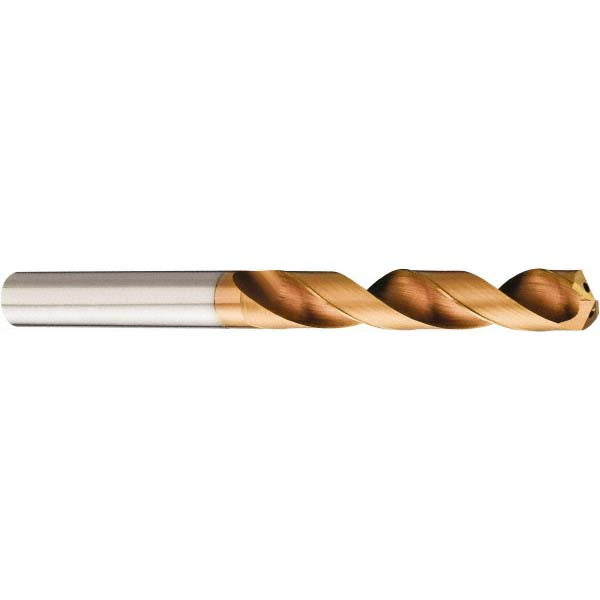

0.3150" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5747211
MFR# 5747211Series R840
$324.79List $409.32
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Sandvik Coromant 5747211 is a 0.3150" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series R840.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.3150
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Drill point length0.0551
Flute by diameter ratio7xD
Flute length2.0866
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.0866
Number of flats0
Number of flutes2
Overall length3.5827in
Point typeSelf Centering
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter0.3150
Shank length1.4961in
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
Tool applicationDrilling
Tool performanceHigh Performance
