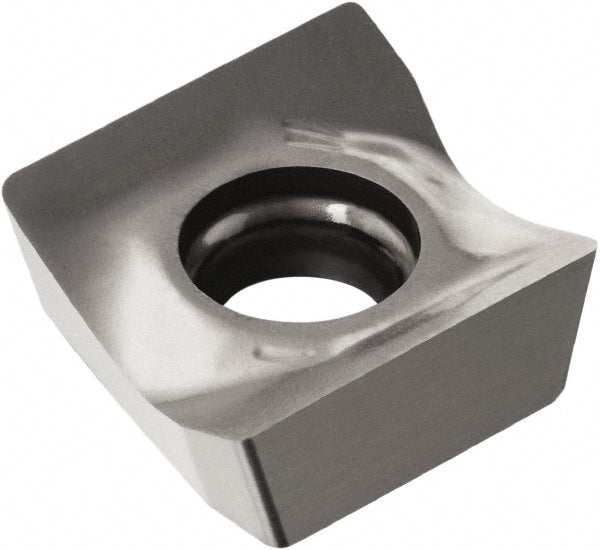

R590-110504H-NL H10 Solid Carbide Insert, Grade H10 - Sandvik Coromant 5747652
MFR# 5747652ISO/ANSI# R590-110504H-NL H10Cat# R590-110504H-NL H10Series R590
$29.34List $36.50
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC29/64
ShapeParallelogram
GradeH10
MaterialSolid Carbide
Description
The Sandvik Coromant 5747652 is a R590-110504H-NL H10 solid carbide indexable insert, grade H10. Suited for cast iron, non-ferrous metal.
Specifications
Ansi codeR590-110504H-NL H10
Chip breakerNL
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityR590
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code110504
Insert styleR590
Iso codeR590-110504H-NL H10
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog numberR590-110504H-NL H10
Manufacturer gradeH10
Material applicationCast Iron; Non-Ferrous Metal
Material gradeN10
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Rake angle25
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width in29/64
