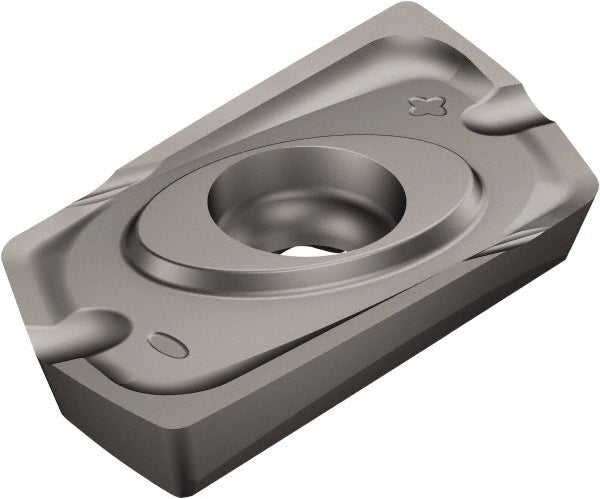

R790-220531PH-NM H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5747680

Sandvik Coromant

R790-220531PH-NM H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5747680

MFR# 5747680ISO/ANSI# R790-220531PH-NM H13ACat# R790-220531PH-NM H13ASeries R790

$69.13List $88.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeH13A
MaterialSolid Carbide

Description

The Sandvik Coromant 5747680 is a R790-220531PH-NM H13A solid carbide indexable insert, grade H13A. Suited for non-ferrous metal.

Specifications

Ansi codeR790-220531PH-NM H13A
Chip breakerNM
Coating processUncoated
Corner radius0.1220
Cutter series compatibilityR790
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.6300
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size22
Insert size code220531
Insert styleR790
Iso codeR790-220531PH-NM H13A
Length0.7087
Length range0.7000 to 0.9000
Manufacturers catalog numberR790-220531PH-NM H13A
Manufacturer gradeH13A
Material applicationNon-Ferrous Metal
Material gradeK20; N15; S20
Maximum depth of cut0.7087
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle9
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width0.6299
