Sandvik Coromant

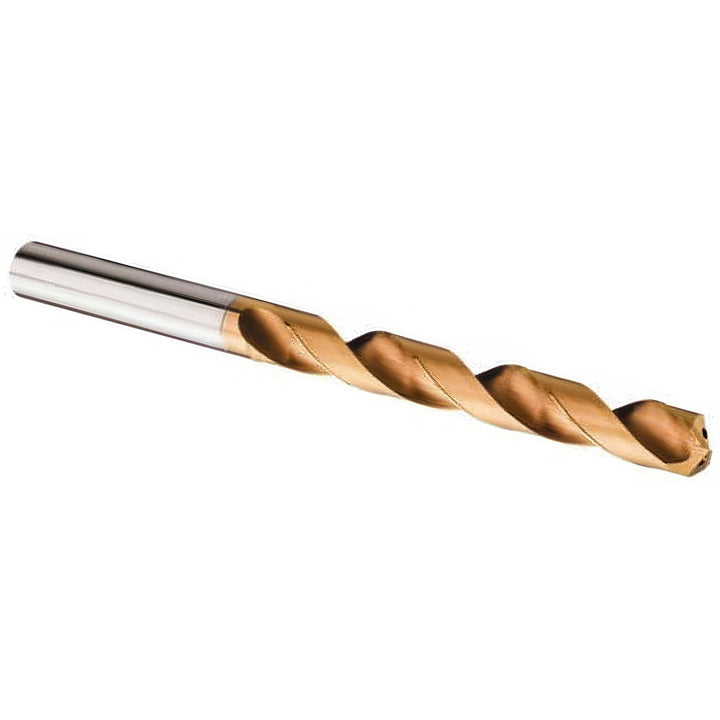

0.4063" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5747823
MFR# 5747823Series CoroDrill Delta-C
$486.72List $624.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description
The Sandvik Coromant 5747823 is a 0.4063" Solid Carbide drill bit with a TiAlN finish, 140° point. Series CoroDrill Delta-C.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size0.4063
Drill point angle degrees140
Drill point length0.0709
Flute length3.5827
Flute typeSpiral
Material applicationSteel; Stainless Steel; Cast Iron
Material grade1220
Maximum drilling depth2.9134
Overall length5-2/4
Point typeStandard
Shank diameter0.4724
Shank length1.7717
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
