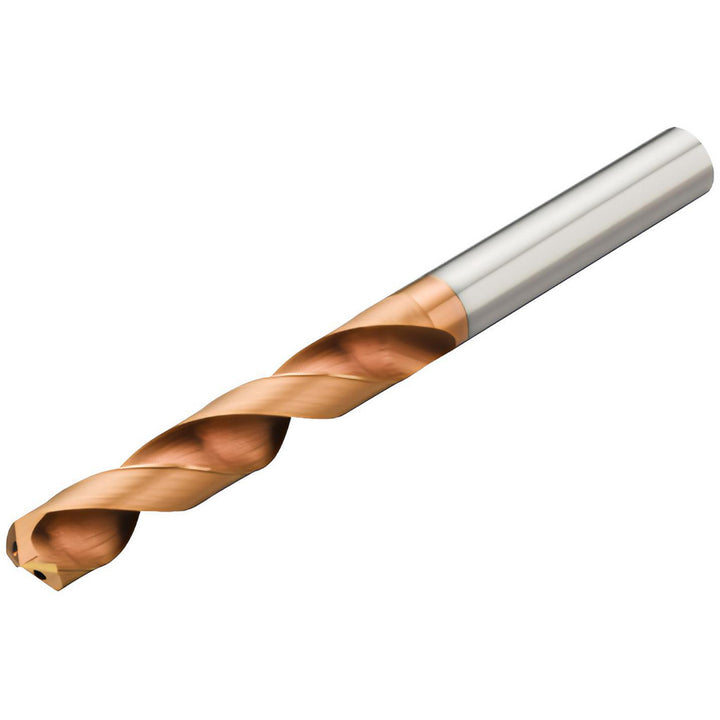

0.1299" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5747856

Sandvik Coromant

0.1299" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5747856

MFR# 5747856Series R840

$166.73List $213.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Sandvik Coromant 5747856 is a 0.1299" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series R840.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1299
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Drill point length0.0236
Flute by diameter ratio3xD
Flute length0.7874
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth0.7874
Number of flats0
Number of flutes2
Overall length2.4409
Point typeSelf Centering
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter0.2362
Shank length1.6535in
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
Tool applicationDrilling
Tool performanceHigh Performance
