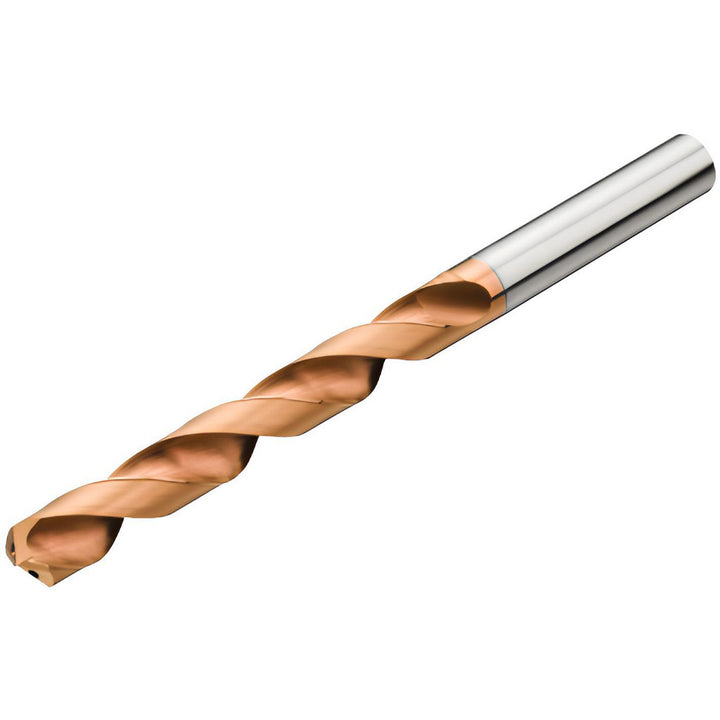

11/32" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5747883

Sandvik Coromant

11/32" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5747883

MFR# 5747883Series R840

$353.67List $453.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/32
Flutes2
CoatingTiAlN

Description

The Sandvik Coromant 5747883 is a 11/32" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 2-61/64 flute length. Series R840.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Drill point length0.0591
Flute by diameter ratio8xD
Flute length in2-61/64
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in2-61/64
Number of flats0
Number of flutes2
Overall length4.7244
Point typeSelf Centering
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter0.3937
Shank length1.7716in
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
Tool applicationDrilling
Tool performanceHigh Performance
