Sandvik Coromant

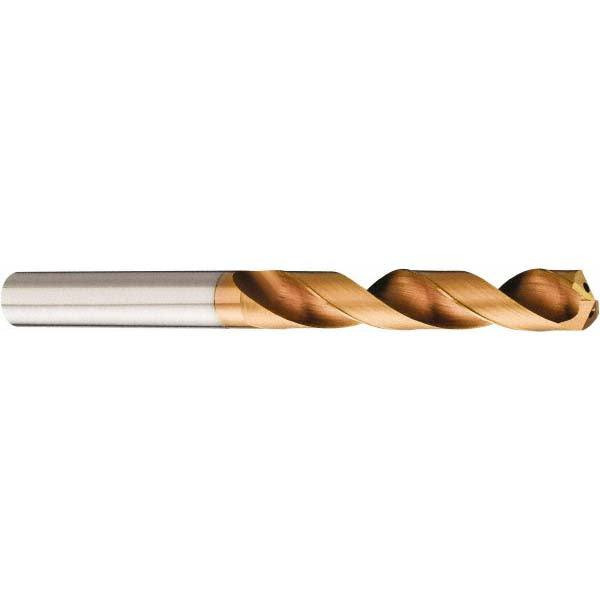

0.1969" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5748031
MFR# 5748031Series CoroDrill Delta-C R840
$179.06List $225.66
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Sandvik Coromant 5748031 is a 0.1969" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron. Series CoroDrill Delta-C R840.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size0.1969
Drill bit size range0.1500 to 0.2000
Drill point angle140
Drill point length0.0315
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length1.1024
Flute typeRegular Spiral
Material grade1220
Maximum drilling depth0.6220
Number of flutes2
Overall length2.5984
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationISO
Specification numberR840-0500-30-A1A 1220
Spiral typeRegular
Tool materialSolid Carbide
