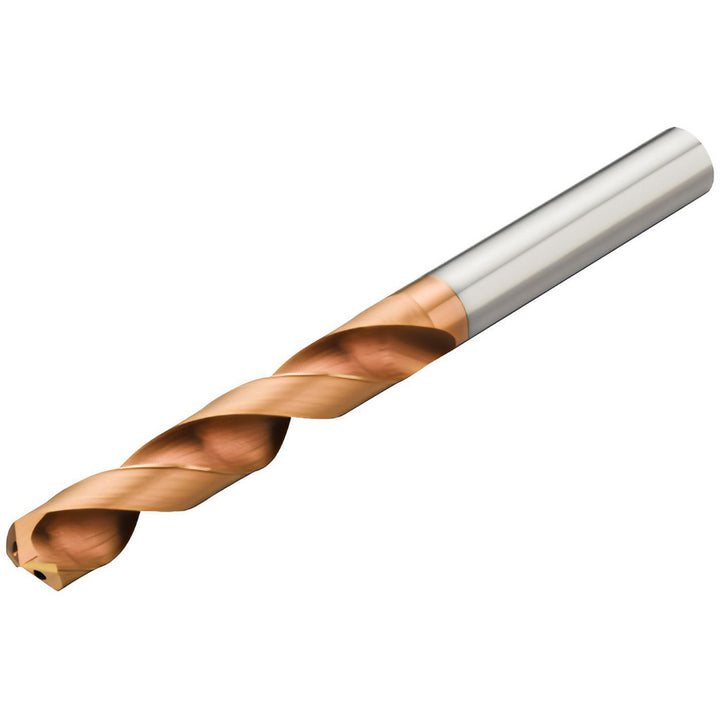

29/64" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5748448

Sandvik Coromant

29/64" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 5748448

MFR# 5748448Series R840

$389.88List $500.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size29/64
Flutes2
CoatingTiAlN

Description

The Sandvik Coromant 5748448 is a 29/64" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, cast iron, hardened materials. Series R840.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in29/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Drill point length0.0787
Flute by diameter ratio6xD
Flute length2.7953
Flute typeRegular Spiral
Material gradeMicrograin
Maximum drilling depth2.7953
Number of flats0
Number of flutes2
Overall length4.6457
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron; Hardened Materials
Shank diameter0.4724
Shank length1.8504
Shank typeStraight
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
Tool applicationDrilling
Tool performanceHigh Performance
