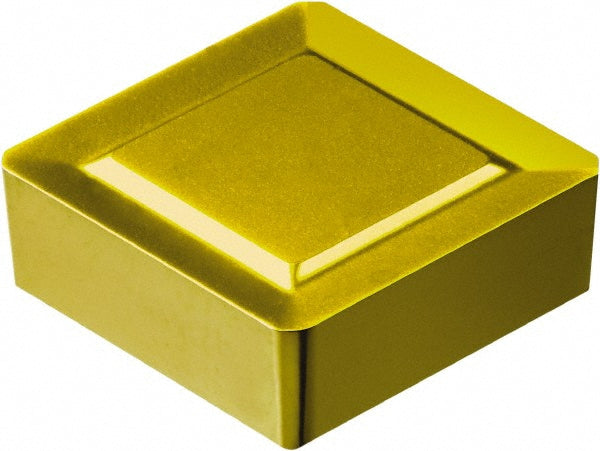

SBEX 12 04 ZZ-11 K20W Solid Carbide Insert, Grade K20W, TiCrN - Sandvik Coromant 5748827

Sandvik Coromant

SBEX 12 04 ZZ-11 K20W Solid Carbide Insert, Grade K20W, TiCrN - Sandvik Coromant 5748827

MFR# 5748827ISO/ANSI# SBEX 12 04 ZZ-11 K20WCat# SBEX 12 04 ZZ-11 K20WSeries SBEX

$37.34List $47.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeK20W
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5748827 is a SBEX 12 04 ZZ-11 K20W solid carbide indexable insert, grade K20W, TiCrN coated. Suited for cast iron.

Specifications

Ansi codeSBEX 12 04 ZZ-11 K20W
Chip breakerCommon
Coating finishTiCrN
Coating processCVD
Corner radius0.0197
Cutting edge styleWiper
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSBEX
Iso codeSBEX 12 04 ZZ-11 K20W
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSBEX 12 04 ZZ-11 K20W
Manufacturer gradeK20W
Material applicationCast Iron
Material gradeK20
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle8
Relief angle5.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
