Sandvik Coromant

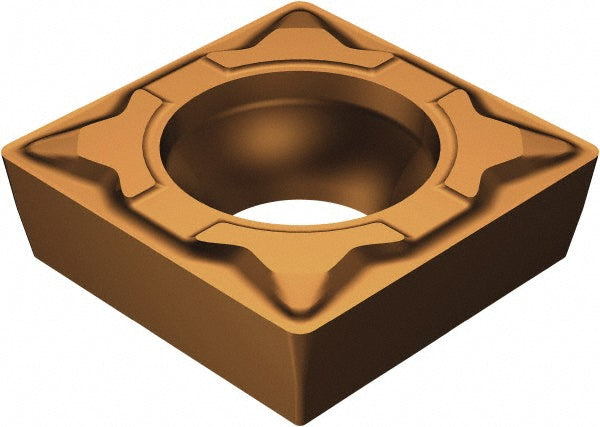

SCMT 09 T3 08-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5748994
MFR# 5748994ISO/ANSI# SCMT09T308Series CoroTurn 107
$20.44List $25.76
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeS - Square
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5748994 is a SCMT 09 T3 08-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Ansi insert codeSCMT32.52
Ansi size code32.52
Chip breakerMF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle90
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeS - Square
Insert size code32.52
Insert styleSCMT
Insert thickness in5/32
Iso codeSCMT 09 T3 08-MF 1125
Iso insert codeSCMT09T308
Iso size code09T308
Manufacturers catalog number5748994
Manufacturer grade1125
Maximum depth of cut0.3437
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Side clearancePositive
Tolerance codeM
Wiper edgeNo
