Sandvik Coromant

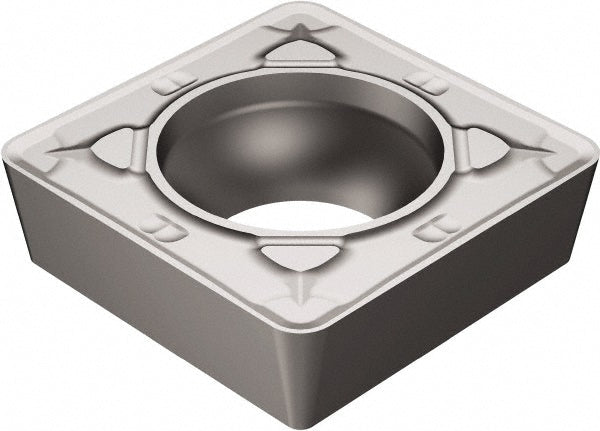

SCMT 12 04 08-KR H13A Carbide Insert, Grade H13A - Sandvik Coromant 5749121
MFR# 5749121ISO/ANSI# SCMT120408
$19.12List $24.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5749121 is a SCMT 12 04 08-KR H13A carbide indexable insert, grade H13A.
Specifications
Ansi insert codeSCMT432
Ansi size code432
Chip breakerKR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.2165
Included angle90
Inscribed circle in1/2
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSCMT
Insert thickness in3/16
Iso codeSCMT 12 04 08-KR H13A
Iso insert codeSCMT120408
Iso size code120408
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Relief angle7
Side clearancePositive
Tolerance codeM
