Sandvik Coromant

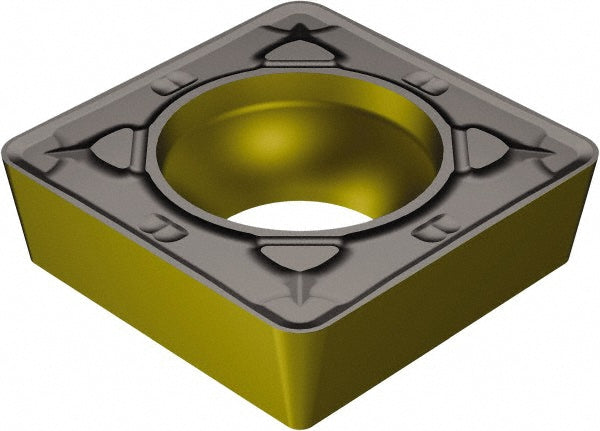

SCMT 12 04 08-KR 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5749131
MFR# 5749131ISO/ANSI# SCMT 12 04 08-KR 3210Series CoroTurn 107
$21.48List $27.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5749131 is a SCMT 12 04 08-KR 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2165
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSCMT
Insert thickness in3/16
Iso codeSCMT 12 04 08-KR 3210
Length range0.4000 - 0.5000
Manufacturer grade3210
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
