Sandvik Coromant

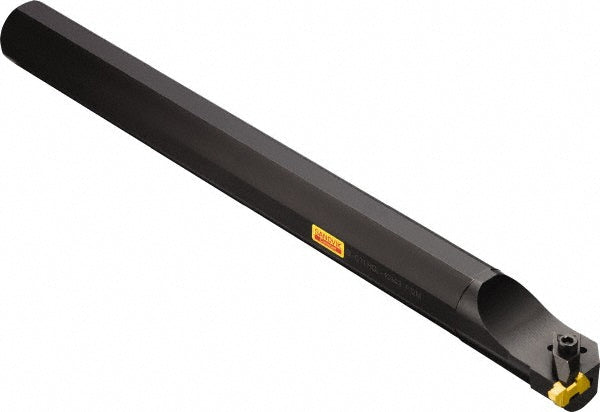

Indexable Boring - Sandvik Coromant 5749328
MFR# 5749328Cat# SI-CTLHOR-08123Series Top Lok
$370.04List $393.12
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5749328 indexable boring. Series Top Lok.
Specifications
Back of bar to cutting edge12.0000
Center to cutting edge0.6880
Coolant throughNo
Hand of holderRight Hand
Insert compatibilityTLG-3189L
Insert holding methodScrew Clamping
Insert thickness0.3440
Lead angle0.00
Manufacturers catalog numberSI-CTLHOR-08123
Minimum bore diameter1.3760
Minimum bore diameter using diamond insert cartridge1.3760
Minimum bore diameter using triangle insert cartridge1.3760
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in1
Number of inserts used on toolholder1
Overall length in12
RakeNeutral
Rake angle0.00
Shank diameter in1
Toolholder styleSI
Tool materialSteel
