SCMT 09 T3 08-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5749403

Sandvik Coromant

SCMT 09 T3 08-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5749403

MFR# 5749403ISO/ANSI# SCMT 09 T3 08-MM 2025Series CoroTurn 107

$18.14List $22.85 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
Grade2025
MaterialCarbide
CoatingTiCN

Description

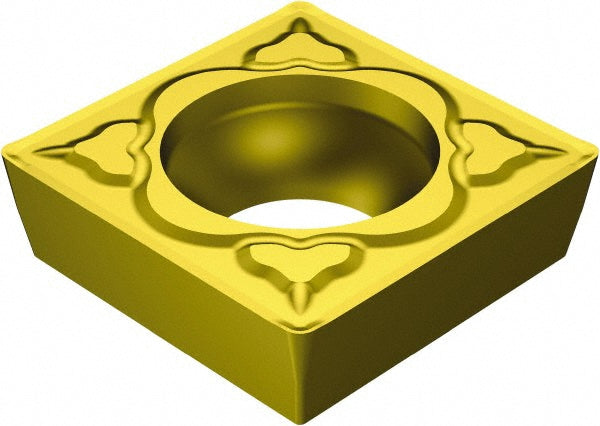

The Sandvik Coromant 5749403 is a SCMT 09 T3 08-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.

Specifications

Chip breakerMM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle90
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code32.52
Insert styleSCMT
Insert thickness in5/32
Iso codeSCMT 09 T3 08-MM 2025
Length range0.3000 - 0.4000
Manufacturer grade2025
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
