Sandvik Coromant

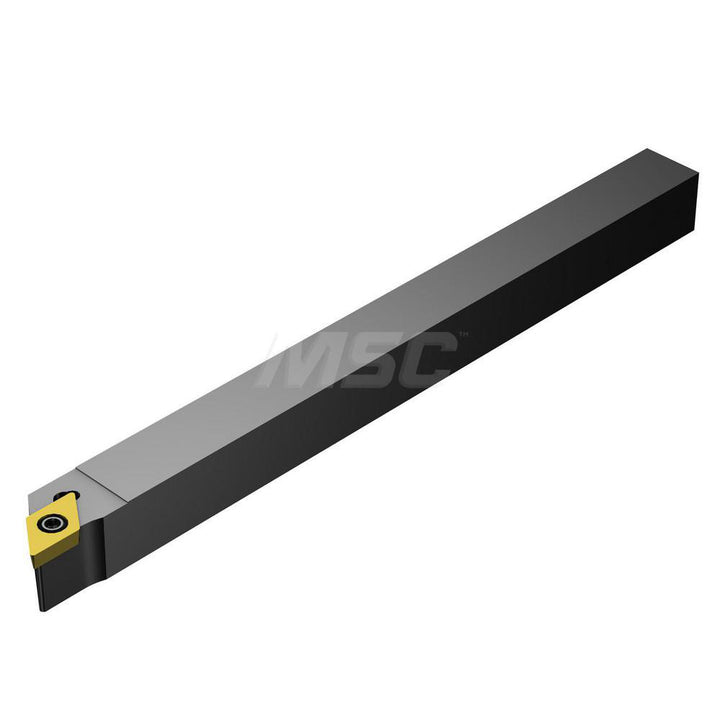

Indexable Turning & Profiling - Sandvik Coromant 5749455
MFR# 5749455Series CoroTurn® 107
$158.58List $168.48
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5749455 indexable turning & profiling. Series CoroTurn® 107.
Specifications
Back of bar to cutting edge4.9213
Cutting tool applicationFacing
Hand of holderRight Hand
Head length0.7874
Insert compatibilityDCMT 32.52
Insert holding methodScrew
Insert inscribed circle in3/8
Insert width in3/8
Multi use toolYes
Overall length4.9213
RakeNeutral
Rake angle0
Shank height0.6299
Shank width0.6299
Toolholder materialSteel
Toolholder styleSDJCR
