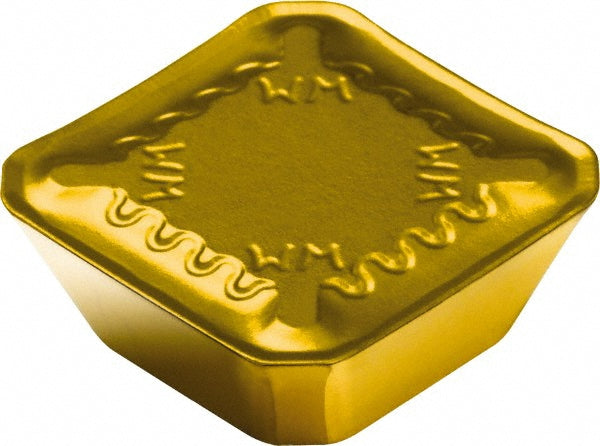

SEKR 12 03 AZ-WM 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5749679
MFR# 5749679ISO/ANSI# SEKR 12 03 AZ-WM 235Cat# SEKR 12 03 AZ-WM 235Series SEKR
$32.65List $41.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade235
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5749679 is a SEKR 12 03 AZ-WM 235 solid carbide indexable insert, grade 235, TiCN coated. Suited for steel, stainless steel.
Specifications
Ansi codeSEKR 12 03 AZ-WM 235
Chip breakerWM
Coating finishTiCN
Coating processCVD
Corner radius0.0591
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1203
Insert styleSEKR
Iso codeSEKR 12 03 AZ-WM 235
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKR 12 03 AZ-WM 235
Manufacturer grade235
Material applicationSteel; Stainless Steel
Maximum depth of cut0.2520
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle15
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
