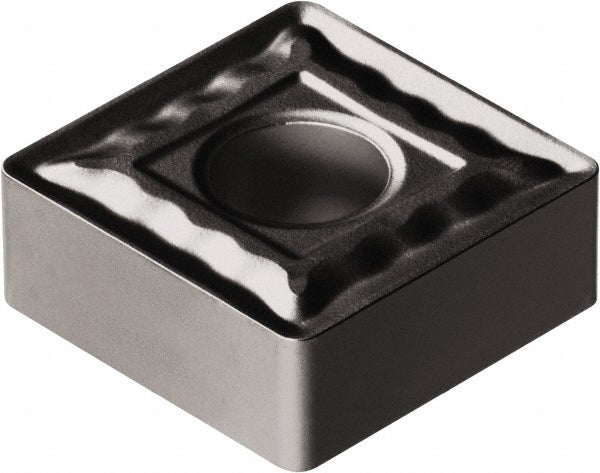

SNMG 12 04 16-QM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5749973
MFR# 5749973ISO/ANSI# SNMG 12 04 16-QM 1105
$18.49List $23.30
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5749973 is a SNMG 12 04 16-QM 1105 carbide indexable insert, grade 1105, TiAlN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN
Corner radius in1/16
Hole diameter0.2030
Included angle90
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code434
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 16-QM 1105
Length range0.4000 - 0.5000
Manufacturer grade1105
Relief angle0
Tolerance codeM
