Sandvik Coromant

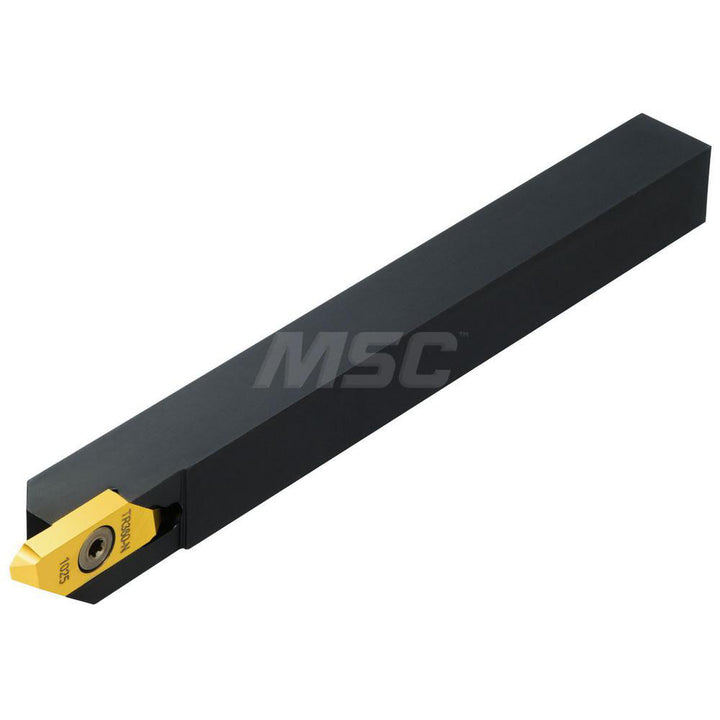

Indexable Cut-Off - Sandvik Coromant 5750041
MFR# 5750041Cat# SMALR 10C3Series CoroCut XS
$169.73
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5750041 indexable cut-off. Series CoroCut XS.
Specifications
Back of bar to cutting edge5.0000
Compatible insert size codeMACR
Coolant throughNo
Hand of holderRight
Head height in5/8
Insert holding methodScrew
Insert seat size3
Manufacturers catalog numberSMALR 10C3
Maximum depth of cut0.3346
Maximum insert width in1/8
Maximum overhang in1.0630
Maximum workpiece diameter in5/8
Minimum insert width in1/8
Multi use toolYes
Overall length in5
Shank height in5/8
Shank length5.0000
Shank width diameter in5/8
Toolholder styleSMALR
