Sandvik Coromant

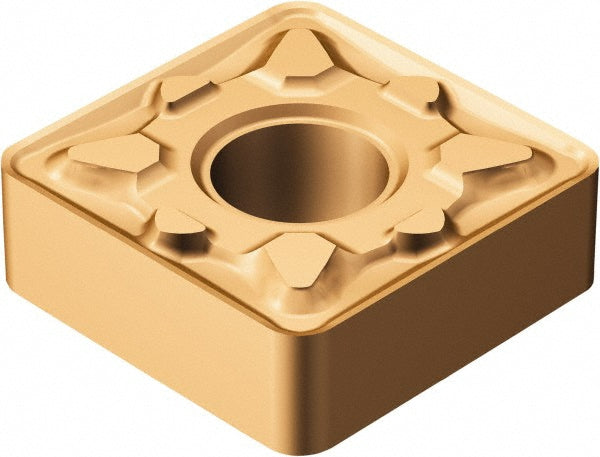

SNMG 12 04 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5750114
MFR# 5750114ISO/ANSI# SNMG 12 04 08-MM 1125Series T-Max P
$19.54List $25.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5750114 is a SNMG 12 04 08-MM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2032
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-MM 1125
Manufacturers catalog number5750114
Manufacturer grade1125
Maximum depth of cut0.4685
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
