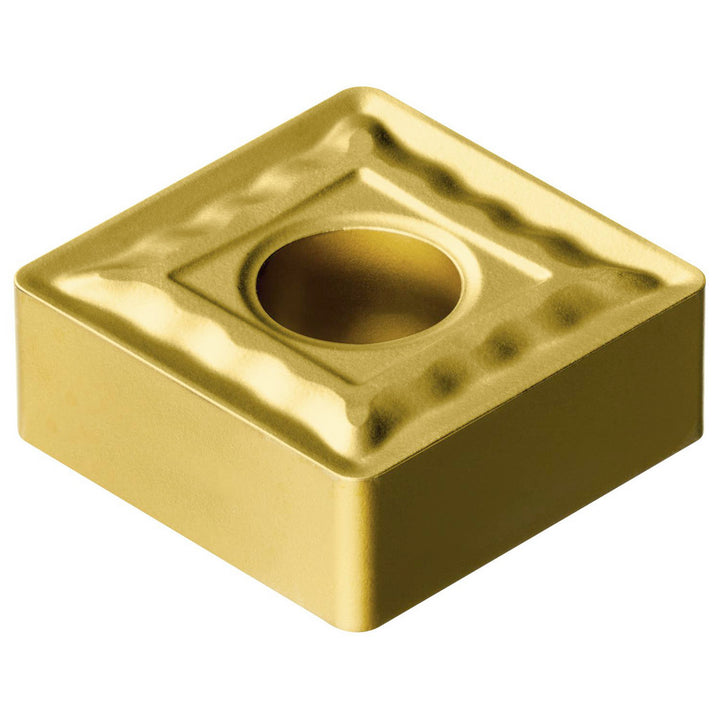

SNMG 12 04 08-QM 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5750309
MFR# 5750309ISO/ANSI# SNMG 12 04 08-QM 235Series T-Max P
$17.77List $22.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5750309 is a SNMG 12 04 08-QM 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-QM 235
Length range0.4000 - 0.5000
Manufacturer grade235
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
