Sandvik Coromant

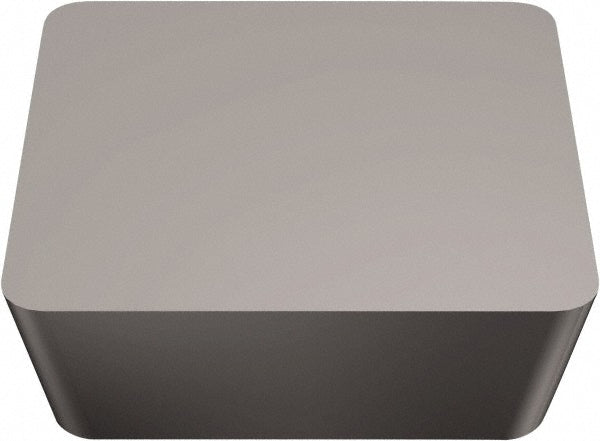

SPGN 09 03 08 H13A Carbide Insert, Grade H13A - Sandvik Coromant 5751015
MFR# 5751015ISO/ANSI# SPGN 09 03 08 H13A
$20.75List $26.14
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5751015 is a SPGN 09 03 08 H13A carbide indexable insert, grade H13A.
Specifications
Chip breakerN
Clearance codeP
Corner radius in1/32
Included angle90
Inscribed circle in3/8
Insert holding methodClamp
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code322
Insert styleSPGN
Insert thickness in1/8
Iso codeSPGN 09 03 08 H13A
Length range0.3000 - 0.4000
Manufacturer gradeH13A
Relief angle11
Tolerance codeG
