Sandvik Coromant

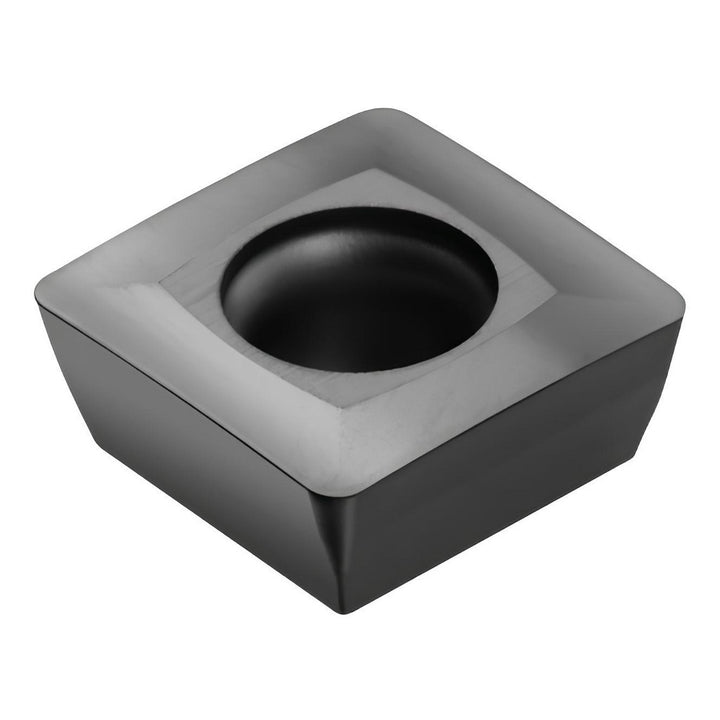

SPMT 12 04 08-WH H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5751098
MFR# 5751098ISO/ANSI# SPMT 12 04 08-WH H13ACat# SPMT432-WH H13ASeries SPMT
$23.69List $29.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5751098 is a SPMT 12 04 08-WH H13A solid carbide indexable insert, grade H13A. Suited for cast iron, non-ferrous metal, superalloys & titanium.
Specifications
Ansi codeSPMT432-WH H13A
Chip breakerWH
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityR215.64; RA215.64
Cutting edge styleCorner Rounded
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code432
Insert styleSPMT
Iso codeSPMT 12 04 08-WH H13A
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPMT432-WH H13A
Manufacturer gradeH13A
Material applicationCast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeK20; N15; S20
Maximum depth of cut0.4685
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
