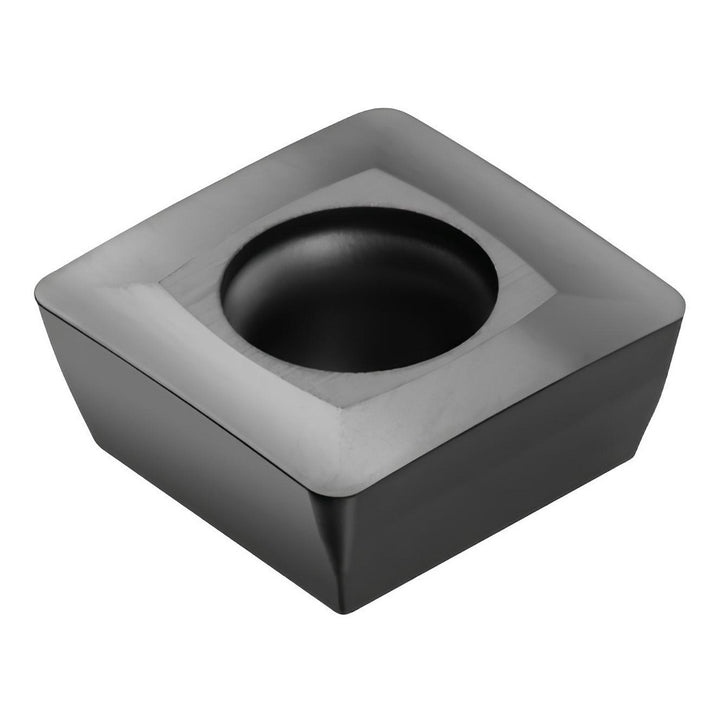

SPMT 12 04 08-WH SM30 Solid Carbide Insert, Grade SM30 - Sandvik Coromant 5751099

Sandvik Coromant

SPMT 12 04 08-WH SM30 Solid Carbide Insert, Grade SM30 - Sandvik Coromant 5751099

MFR# 5751099ISO/ANSI# SPMT 12 04 08-WH SM30Cat# SPMT432-WH SM30Series SPMT

$18.55List $23.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeSM30
MaterialSolid Carbide

Description

The Sandvik Coromant 5751099 is a SPMT 12 04 08-WH SM30 solid carbide indexable insert, grade SM30. Suited for steel, stainless steel.

Specifications

Ansi codeSPMT432-WH SM30
Chip breakerWH
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityR215.64; RA215.64
Cutting edge styleCorner Rounded
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code432
Insert styleSPMT
Iso codeSPMT 12 04 08-WH SM30
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPMT432-WH SM30
Manufacturer gradeSM30
Material applicationSteel; Stainless Steel
Maximum depth of cut0.4685
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
