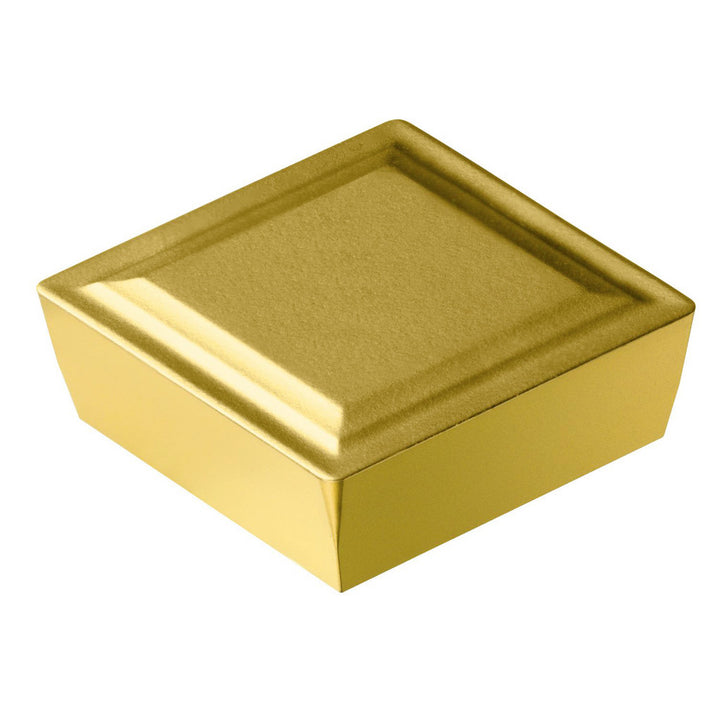

SPMR 12 03 08 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5751317

Sandvik Coromant

SPMR 12 03 08 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5751317

MFR# 5751317ISO/ANSI# SPMR 12 03 08 2025Series T-Max S

$23.87List $30.08 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
Grade2025
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5751317 is a SPMR 12 03 08 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.

Specifications

Chip breaker53
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code422
Insert styleSPMR
Insert thickness in1/8
Iso codeSPMR 12 03 08 2025
Length range0.4000 - 0.5000
Manufacturer grade2025
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
